Original Article

Volume 18 • June 2017

Differences in Clinical Presentation of Osteochondritis Dissecans of the Capitellum in Males and Females

Katherine Eisenberg, BS, Mark Wu, BS, Elspeth Hart, PA-C, ATC, Kathryn Williams, MS, Donald S. Bae, MD

The authors report no conflict of interest related to this work.

©2017 by The Orthopaedic Journal at Harvard Medical School

Osteochondritis Dissecans PDF

ABSTRACT

OBJECTIVE Capitellar osteochondritis dissecans (OCD) has primarily been described in male, adolescent baseball players. The aim of this study was to describe the presentation of OCD in males versus females at one tertiary children’s hospital.

METHODS 88 patients who presented to a tertiary children’s hospital with capitellar OCD between March 2014 and July 2016 were enrolled in a prospective registry, including 45 males with 48 affected elbows and 43 females with 45 affected elbows. Historical and clinical features as well as operative rates were compared between groups. Pre-operative imaging was used to analyze Nelson grades and Sauvegrain bone ages. Functional status was assessed using the QUICKDash questionnaire and Timmerman-Andrews Elbow Score.

RESULTS Mean age at presentation was 15.1 years for males and 13.6 years for females (p<0.001). Mean skeletal age was 14.2 years for boys and 11.6 years for girls (p<0.001). OCD affected the non-dominant elbow in 20% of males versus 43% of females (p=0.036). Fifty-eight percent of males played baseball, of which 74% were pitchers. Seventy-three percent of females were competitive gymnasts. More males (70%) were multisport athletes, compared to females (37%) (p= 0.003).

CONCLUSION Elbow OCD presented with equal frequency in male and female adolescent athletes. While the majority of affected males were baseball players, affected females tended to be competitive gymnasts who presented at younger ages with more non-dominant elbow involvement.

LEVEL OF EVIDENCE Prognostic Level II

KEYWORDS Osteochondritis Dissecans, capitellum, adolescent athlete, gymnastics, baseball

Osteochondritis dissecans (OCD) is a characteristic condition of the adolescent athlete, typically affecting the distal femur, talus, and capitellum (Figure 1). While the exact etiology of capitellar OCD remains unclear, it is thought that repetitive loading of the vulnerable, ischemic distal humeral chondroepiphysis leads to subchondral bone and articular cartilage failure.1-5 OCD of the capitellum can lead to pain, effusion, decreased range of motion, and mechanical symptoms (locking, catching, and crepitus) of the elbow.

FIGURE 1
Sagittal DESS MRI image depicting an OCD lesion of the capitellum
Clinical Presentation of Osteochondritis Dissecans of the Capitellum in Males and Females Figure 1
Courtesy of Children’s Orthopaedic Surgery Foundation. Permission For Use Required.





Historically, capitellar OCD has been well characterized in throwing athletes. In particular, many studies have explored the presentation and treatment of OCD in male baseball players.3,6-9 However, OCD has also become a greater concern for female athletes with increasing female participation in sports.10 Gymnastics, a predominantly female sport involving repetitive loading of the elbow, is an example of an activity in which there may be increased risk for capitellar OCD.

Few studies have described the presentation of capitellar OCD in young, female athletes.2,11,12 The purpose of this investigation was to compare the historical and clinical features of capitellar OCD in males versus females. We hypothesized that capitellar OCD would present at similar rates, with similar clinical features in male and female athletes, but with a difference in primary sports participation.

METHODS

Between March 2014 and July 2016, 88 patients who presented to a tertiary children’s hospital with capitellar OCD were enrolled in a prospective registry. Patients were diagnosed based on physical exam, plain radiographs, and/or magnetic resonance imaging (MRI). Patients were queried for history of prior elbow pathology, OCD in other joints, family members with OCD, and sports participation. Tenderness over the capitellum, range of motion, pain, and mechanical symptoms such as locking, catching and crepitus were assessed during the initial clinic visit. Elbow flexion and extension was assessed by experienced attending surgeons with the shoulder abducted 90 degrees and forearm in supination; by convention, full elbow extension was defined as 0 degrees.13 Patients completed the QUICKDash questionnaire, used to assess upper-extremity disability and symptoms, and the Timmerman-Andrews Elbow Score, used to assess elbow pain and stiffness.14,15 (Table 1) While the QUICKDash has been validated in adult populations, it has also been used in multiple studies examining adolescent populations.16-18

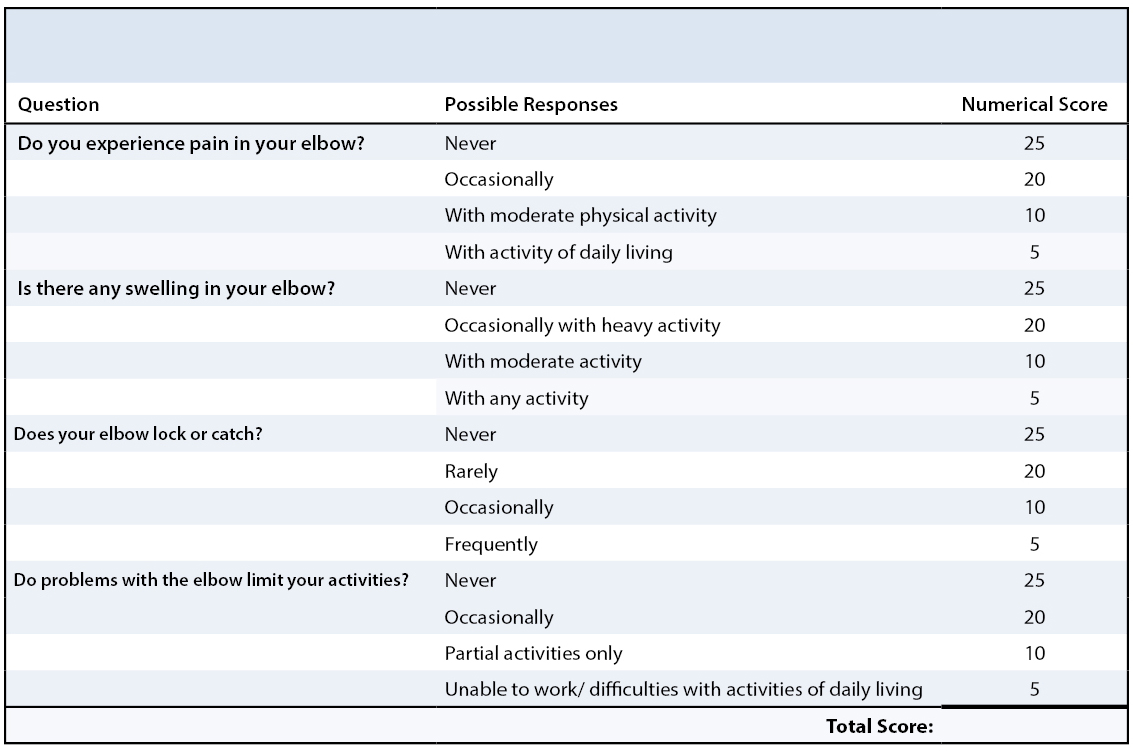

TABLE 1
Timmerman-Andrews Elbow Score. The total score is calculated as the sum of the four question’s scores. Scores may range from 20 to 100 with a score of 100 indicating normal elbow function.11
Clinical Presentation of Osteochondritis Dissecans of the Capitellum in Males and Females Table 1
All Rights Reserved. Permission For Use Required.



Coronal and sagittal MRI scans were used to confirm diagnoses, determine the Nelson grade of the OCD, and identify loose bodies.19 DESS and T2 sequences were used to determine Nelson grades.20 (Table 2) Forty-one percent of patients had MRIs with DESS sequences. T2 sequences were used to grade OCD lesions in the remaining patients.21 Plain radiographs were assessed to calculate Sauvegrain bone age.22

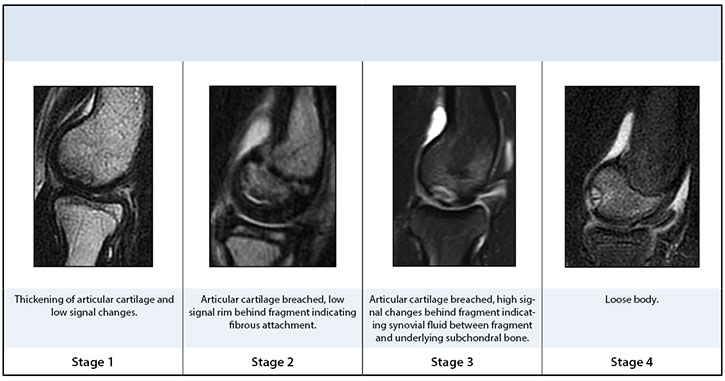

TABLE 2
Dipaola, Nelson and Colville’s staging system for characterizing osteochondral lesions14
Clinical Presentation of Osteochondritis Dissecans of the Capitellum in Males and Females Table 2
All Rights Reserved. Permission For Use Required.



Descriptive statistics included frequency counts and percentages for categorical variables, and means and standard deviations for continuous variables. Independent sample t-tests were used to analyze differences in chronological and skeletal age in males and females. Wilcoxon rank sum tests were performed to analyze all other continuous variables. Fisher’s Exact Tests were performed on all categorical variables such as multi-sport participation, Nelson grades of lesions and numbers, and types of surgeries between males and females. A p-value < 0.05 was considered statistically significant. SAS (version 9.4, SAS Institute, Cary, NC) and SPSS (IBM SPSS Statistics for Macintosh, Version 22.0. Armonk, NY: IBM Corp) software were used.

RESULTS

There were 45 males with 48 affected elbows, and 43 females with 45 affected elbows enrolled in the prospective registry. The mean chronological and skeletal ages were statistically different between males and females presenting with capitellar OCD lesions. The mean chronological age at presentation was 15.1 years (sd = 1.9) for males and 13.6 years (sd = 2.6) for females (p<0.001). The mean skeletal age at presentation was 14.2 years (sd = 0.8) for males and 11.6 years (sd = 0.9, p<0.001) for females. Males and females presented with statistically different body mass indexes (BMIs); the mean BMI of males was 21.7 (sd = 3.4) and the mean BMI of females was 19.7 (sd = 3.7, p = 0.004). The mean period between the onset of symptoms and first clinical evaluation was 8.94 months for males and 4.71 months for females (p = 0.122).

Females in this study presented with more non-dominant elbow OCD involvement than males, as OCD affected the non-dominant elbow in 20% of males versus 43% of females (p=0.036). More males (70%) were multisport athletes compared to females (37%) (p = 0.003). The majority of males (58%) played baseball and 74% of baseball players were pitchers. Seventy-three percent of females were competitive gymnasts. The mean Junior Olympic gymnastics level was level 7 (range 3 -10).

There was no significant difference between males and females in elbow extension (p = 0.982) or flexion (p = 0.933) at time of initial presentation. Mean elbow flexion for females was 130° (sd = 7) and for males was 129° (sd = 11°, p = 0.933). Mean elbow extension for females was 5° (sd = 8) and for males was 6° (sd = 13, p = 0.982). There was no statistical difference in average Timmerman-Andrews Elbow Scores between patients that had OCD in their dominant arms (68.8, sd=21.7) and patients that had OCD in their non-dominant arms (47.3, sd=15.1) (p = 0.136). There was also no statistical difference in average Timmerman-Andrews Elbow Scores between males (60.0, sd = 28.3) and females (51.9, sd = 18.5, p = 0.73). Sixty-seven percent of males had unstable OCD lesions (Nelson grade 3 or 4) compared to 54% of females (p = 0.272). There was no statistical difference in contained or uncontained lesion presentation between males and females; 83% of males and 80% of females had contained lesions (p = 0.779).23 There was also no statistical difference in the number or types of surgeries performed on males versus females; 71% of males and 81% of females underwent surgery, consisting of debridement, microfracture, internal fixation, and/or osteochondral grafting (p =0.328). (Table 3)

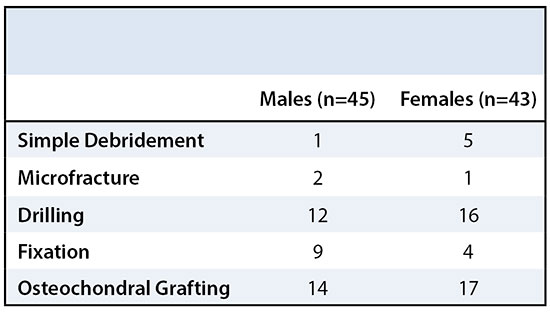

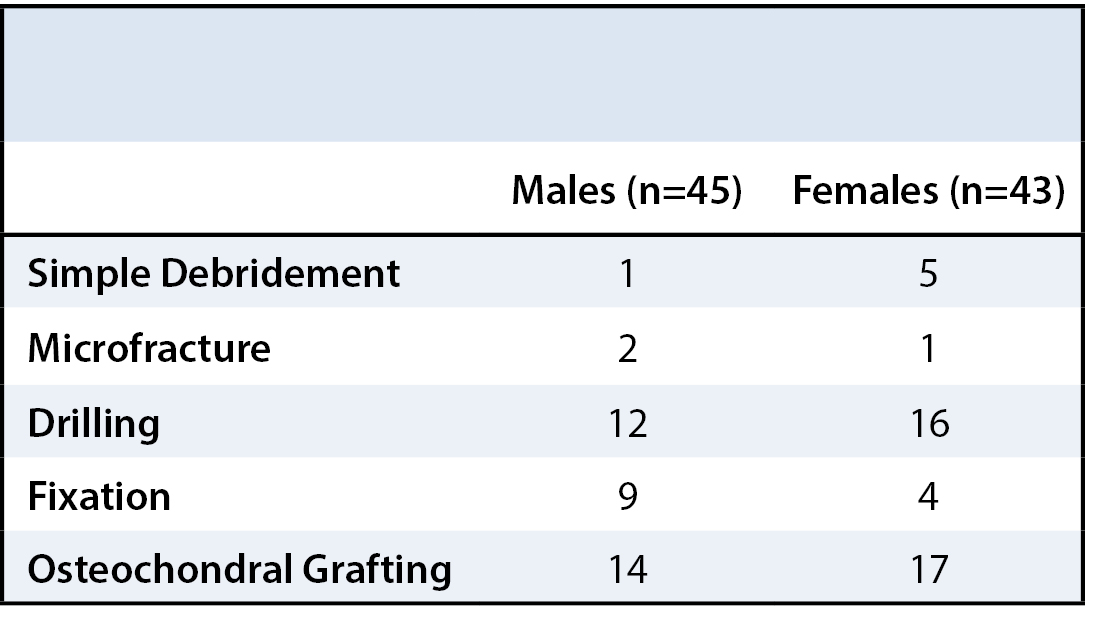

TABLE 3
Numbers of surgeries for males and females by type of surgery performed
Clinical Presentation of Osteochondritis Dissecans of the Capitellum in Males and Females Table 2
All Rights Reserved. Permission For Use Required.



DISCUSSION

The 2008 National Council of Youth Sports Survey found that 27 million youths between 6-18 years of age participate in team sports, and 60 million children and adolescents participate in some form of organized sport.24 It has also been reported that an increasing number of children are participating in organized sports at an earlier age.24,25 With this rise in sports participation, recent reports have described high rates of acute and overuse injuries in youth athletes.10,26,27

One factor contributing to increasing overuse injuries in young athletes may be the rise of early sports specialization.28 Early specialization may lead to greater cumulative microtrauma, as well as greater repetitive loading to the immature skeleton.29 In the current investigation, 73% of females with capitellar OCD were year-round competitive gymnasts, and only 37% of females were multisport athletes, raising the concern regarding a potential relationship between specialization and injury.

The benefits of multi-sport participation at young ages have been well documented. Snyder surveyed athletes from the 1984 - 2012 Olympic Games, and 88 percent of those athletes felt that multisport participation was either “valuable” or “very valuable” to their development as an athlete.30 Multi-sport participation before puberty may be beneficial to developing athletes in multiple ways. For example, young, multisport athletes may benefit from greater motor skill development and fewer injury risk factors.28 Consequently, even in sports such as gymnastics, where early specialization may be important to achieving elite/Olympic status, there have been efforts made to reevaluate competitive standards so that early specialization may become unnecessary.25

Capitellar OCD is one overuse injury characteristic of adolescent athletes. However, capitellar OCD has been primarily described in males. With growing sport participation among all children, it is important to understand the clinical presentation of this relatively common overuse injury in both males and females.

In our cohort of patients, the sports associated with elbow OCD were baseball and gymnastics in males and females, respectively. Our findings are consistent with prior published information, highlighting the prevalence of elbow OCD in adolescent male baseball players, and pitchers in particular.3,6-9 More notably, our results identify a number of female gymnasts with capitellar OCD.2,11,12 It is interesting to note that there was a trend for females to present with earlier Nelson grades than their male counterparts. While the reasons for these differences in clinical presentation and treatment are unclear, it is possible that earlier grade OCD lesions may result in greater functional limitations given the demands of gymnastics. The similarity in Timmerman-Andrews Elbow Scores between male and female cohorts – despite the fact that females had earlier stage OCD - supports this hypothesis.

Additionally, female athletes with OCD of the capitellum were more likely to have non-dominant arm involvement than their male counterparts. While additional investigation is needed to characterize the relationship between gymnastics and capitellar OCD, it is possible that the difference in non-dominant elbow involvement seen between male and female athletes is due to the fact that the majority of the female athletes were gymnasts and used both arms to perform, while the majority of the male athletes played baseball and had a dominant throwing arm. The lower BMI in females compared to males at presentation may also be attributable to the type of sport played, given that gymnasts have been shown to have a relatively low BMI.31

Repetitive microtrauma, a common cause of overuse injuries in sports, is thought to be the largest contributing factor to capitellar OCD. Valgus stress common in throwing athletes, such as baseball pitchers, and increased axial load common in gymnasts may both contribute to the microtrauma common with capitellar OCD.29,32-35 Our results support the relationship between repetitive valgus stress and/or axial loading and the development of capitellar OCD, as 58% of the male athletes were baseball players and 73% of females were competitive gymnasts.29,36

Overuse injuries may be common in gymnastics because compression forces transmitted from the hands through the elbow, during upper extremity weight bearing activities such as tumbling, may cause trauma to the radiocapitellar joint.2,37,38 For example, Koh et al. have described how coached extension of the elbows during the double arm support phase of a back handspring may force the elbows to accept the full ground force generated by the maneuver, which may be upwards of 2.37 times body weight.39 Without coaching, elbows would naturally bend during such an exercise, perhaps attenuating the compression forces generated. These compression forces, as well as the valgus moment imparted on the elbows during back handsprings, may increase gymnasts’ risk of elbow injury and capitellar OCD in particular.39-41

Intense training for female gymnasts at a young age may also contribute to the development of OCD.2 Our findings that female gymnasts presented at younger skeletal ages may be explained by earlier specialization and higher intensity training at a younger age, as well as by the delayed skeletal maturation commonly seen in higher level gymnasts.42,43 Indeed, there may be an extended window of injury risk due to the longer periods of time when gymnasts are both training intensely and have vulnerable, predominantly cartilaginous distal humeral chondroepiphyses.

Injury prevention strategies have been suggested for both gymnastics and baseball to reduce the risk of elbow injury.29,34,44-48 (Table 4) While prior studies have proposed measures to prevent injuries in baseball, less evidence-based data are available on injury prevention techniques in gymnastics.34,44-48 Therefore, many of the recent initiatives to reduce gymnastics injuries have been based on the personal experiences of gymnasts and coaches. For example, two recent tactics have been to place limits on activities that heavily impact the elbow during periods of rapid growth and to set limits on skill counts in gymnastics, similar to limiting pitch counts in baseball.

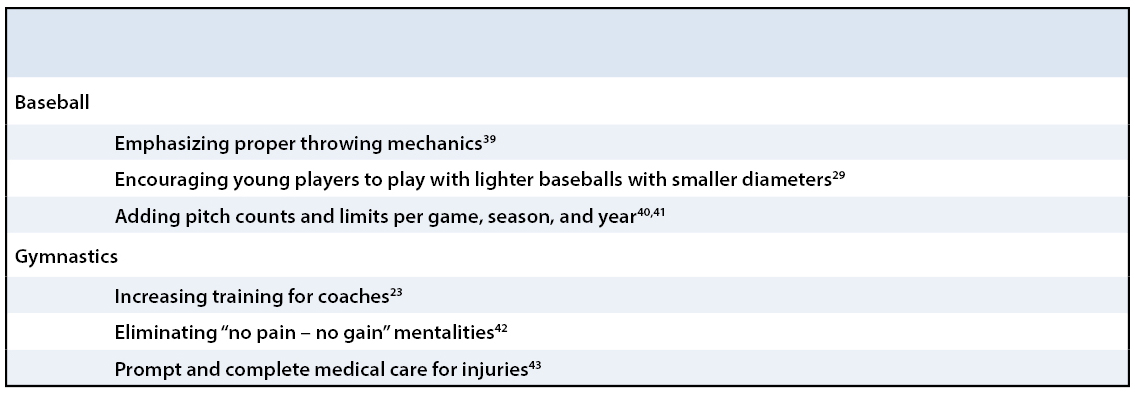

TABLE 4
Injury Prevention Strategies for Baseball and Gymnastics
Clinical Presentation of Osteochondritis Dissecans of the Capitellum in Males and Females Table 2
All Rights Reserved. Permission For Use Required.



There were a number of limitations to the current investigation. While patients were enrolled and data collected in a prospective longitudinal fashion, there may be a sampling bias, as all patients were treated at a single tertiary care, referral center. Furthermore, as our OCD registry has only been in existence for two years, the current investigation consists of a small number of patients with limited longer-term functional outcomes data. Multicenter expansion is planned, and further longitudinal follow-up of a larger number of patients will allow for continued investigation of OCD in both male and female adolescent athletes.

Despite these limitations, our results indicate that OCD of the capitellum now presents with equal frequency in male and female adolescent athletes. While the majority of affected males were baseball players, affected females tended to be competitive gymnasts who presented at younger ages and with more non-dominant elbow involvement. Further efforts are needed to develop screening and prevention strategies in young female athletes and to identify differences in treatment outcomes, if any, between male and female patients.

REFERENCES
1. Ruchelsman DE, Hall MP, Youm T. Osteochondritis dissecans of the capitellum: current concepts. J Am Acad Orthop Surg. 2010 Sep;18(9):557-67.
2. Jackson DW, Silvino N, Reiman P. Osteochondritis in the female gymnast’s elbow. Arthroscopy. 1989;5(2):129-36.
3. Takahara M, Mura N, Sasaki J, Harada M, Ogino T. Classification, treatment, and outcome of osteochondritis dissecans of the humeral capitellum. J Bone Joint Surg Am. 2007 Jun;89(6):1205-14.
4. Bradley JP, Petrie RS. Osteochondritis dissecans of the humeral capitellum. Diagnosis and treatment. Clin Sports Med. 2001 Jul;20(3):565-90.
5. Haraldsson S. On Osteochondrosis Deformans Juvenilis Capituli Humeri Including Investigation of Intra-Osseous Vasculture in Distal Humerus. Acta Orthopaedica Scandinavica. 1959;30:114-40. Epub 11/4/14. doi: 10.3109/ort.1959.30.suppl-38.01.
6. Takahara M, Ogino T, Fukushima S, Tsuchida H, Kaneda K. Nonoperative treatment of osteochondritis dissecans of the humeral capitellum. Am J Sports Med. 1999 Nov-Dec;27(6):728-32.
7. Kida Y, Morihara T, Kotoura Y, Hojo T, Tachiiri H, Sukenari T, Iwata Y, Furukawa R, Oda R, Arai Y, Fujiwara H, Kubo T. Prevalence and Clinical Characteristics of Osteochondritis Dissecans of the Humeral Capitellum Among Adolescent Baseball Players. Am J Sports Med. 2014 Aug;42(8):1963-71.
8. Matsuura T, Suzue N, Iwame T, Nishio S, Sairyo K. Prevalence of Osteochondritis Dissecans of the Capitellum in Young Baseball Players: Results Based on Ultrasonographic Findings. Orthop J Sports Med. 2014 Aug 12;2(8):2325967114545298.
9. Mirzayan R, Lim MJ. Fresh osteochondral allograft transplantation for osteochondritis dissecans of the capitellum in baseball players. J Shoulder Elbow Surg. 2016 Nov;25(11):1839-1847.
10. Kaestner R, Xin X. Title IX, girls’ sports participation, and adult female physical activity and weight. Eval Rev. 2010 Feb;34(1):52-78.
11. Bojanic I, Ivkovic A, Boric I. Arthroscopy and microfracture technique in the treatment of osteochondritis dissecans of the humeral capitellum: report of three adolescent gymnasts. Knee Surg Sports Traumatol Arthrosc. 2006 May;14(5):491-6.
12. Krijnen MR, Lim L, Willems WJ. Arthroscopic treatment of osteochondritis dissecans of the capitellum: Report of 5 female athletes. Arthroscopy. 2003 Feb;19(2):210-4.
13. Blonna D, Zarkadas PC, Fitzsimmons JS, O’Driscoll SW. Accuracy and inter-observer reliability of visual estimation compared to clinical goniometry of the elbow. Knee Surg Sports Traumatol Arthrosc. 2012 Jul;20(7):1378-85.
14. Timmerman LA, Andrews JR. Arthroscopic treatment of posttraumatic elbow pain and stiffness. Am J Sports Med. 1994 Mar-Apr;22(2):230-5.
15. Beaton DE, Wright JG, Katz JN; Upper Extremity Collaborative Group. Development of the QuickDASH: comparison of three item-reduction approaches. J Bone Joint Surg Am. 2005 May;87(5):1038-46.
16. Ahmad CS, Padaki AS, Noticewala MS, Makhni EC, Popkin CA. The Youth Throwing Score. Am J Sports Med. 2017 Feb;45(2):317-324.
17. Keller RA, Marshall NE, Bey MJ, Ahmed H, Scher CE, van Holsbeeck M, Moutzouros V. Pre- and Postseason Dynamic Ultrasound Evaluation of the Pitching Elbow. Arthroscopy. 2015 Sep;31(9):1708-15.
18. Shymon SJ, Roocroft J, Edmonds EW. Traumatic anterior instability of the pediatric shoulder: a comparison of arthroscopic and open bankart repairs. J Pediatr Orthop. 2015 Jan;35(1):1-6.
19. Nelson DW, DiPaola J, Colville M, Schmidgall J. Osteochondritis dissecans of the talus and knee: prospective comparison of MR and arthroscopic classifications. J Comput Assist Tomogr. 1990 Sep-Oct;14(5):804-8.
20. Dipaola JD, Nelson DW, Colville MR. Characterizing osteochondral lesions by magnetic resonance imaging. Arthroscopy. 1991;7(1):101-4.6.
21. Ellermann JM, Donald B, Rohr S, Takahashi T, Tompkins M, Nelson B, Crawford A, Rud C, Macalena J. Magnetic Resonance Imaging of Osteochondritis Dissecans: Validation Study for the ICRS Classification System. Acad Radiol. 2016 Jun;23(6):724-9.
22. Dimeglio A, Charles YP, Daures JP, de Rosa V, Kabore B. Accuracy of the Sauvegrain method in determining skeletal age during puberty. J Bone Joint Surg Am. 2005 Aug;87(8):1689-96.
23. Shi LL, Bae DS, Kocher MS, Micheli LJ, Waters PM. Contained versus uncontained lesions in juvenile elbow osteochondritis dissecans. J Pediatr Orthop. 2012 Apr-May;32(3):221-5.
24. DiFiori JP, Benjamin HJ, Brenner J, Gregory A, Jayanthi N, Landry GL, Luke A. Overuse injuries and burnout in youth sports: a position statement from the American Medical Society for Sports Medicine. Clin J Sport Med. 2014 Jan;24(1):3-20.
25. LaPrade RF, Agel J, Baker J, Brenner JS, Cordasco FA, Cote J, et al. AOSSM Early Sport Specialization Consensus Statement. Orthop J Sports Med. 2016 Apr 28;4(4):2325967116644241.
26. Schroeder AN, Comstock RD, Collins CL, Everhart J, Flanigan D, Best TM. Epidemiology of overuse injuries among high-school athletes in the United States. J Pediatr. 2015 Mar;166(3):600-6.
27. Roos KG, Marshall SW, Kerr ZY, Golightly YM, Kucera KL, Myers JB, Rosamond WD, Comstock RD. Epidemiology of overuse injuries in collegiate and high school athletics in the United States. Am J Sports Med. 2015 Jul;43(7):1790-7.
28. Myer GD, Jayanthi N, DiFiori JP, Faigenbaum AD, Kiefer AW, Logerstedt D, Micheli LJ. Sports Specialization, Part II: Alternative Solutions to Early Sport Specialization in Youth Athletes. Sports Health. 2016 Jan-Feb;8(1):65-73.
29. Magra M, Caine D, Maffulli N. A review of epidemiology of paediatric elbow injuries in sports. Sports Med. 2007;37(8):717-35.
30. Synder C. The path to excellence: A view on the athletic development of U.S. Olympians who competed from 2000–2012. USA: Sport Performance and Coach Education Divisions, 2014, pp.1–65.
31. Galetta F, Franzoni F, D’Alessandro C, Piazza M, Tocchini L, Fallahi P, Antonelli A, Cupisti F, Santoro G. Body composition and cardiac dimensions in elite rhythmic gymnasts. J Sports Med Phys Fitness. 2015 Sep;55(9):946-52.
32. Kobayashi K, Burton KJ, Rodner C, Smith B, Caputo AE. Lateral compression injuries in the pediatric elbow: Panner’s disease and osteochondritis dissecans of the capitellum. J Am Acad Orthop Surg. 2004 Jul-Aug;12(4):246-54.
33. Mihata T, Quigley R, Robicheaux G, McGarry MH, Neo M, Lee TQ. Biomechanical characteristics of osteochondral defects of the humeral capitellum. Am J Sports Med. 2013 Aug;41(8):1909-14.
34. Fleisig GS, Barrentine SW, Zheng N, Escamilla RF, Andrews JR. Kinematic and kinetic comparison of baseball pitching among various levels of development. J Biomech. 1999 Dec;32(12):1371-5.
35. Hotchkiss RN. Common disorders of the elbow in athletes and musicians. Hand Clin. 1990 Aug;6(3):507-15.
36. Caine DJ, Nassar L. Gymnastics injuries. Med Sport Sci. 2005;48:18-58.
37. Maffulli N, Chan D, Aldridge MJ. Derangement of the articular surfaces of the elbow in young gymnasts. J Pediatr Orthop. 1992 May-Jun;12(3):344-50.
38. Goldberg MJ. Gymnastic injuries. Orthop Clin North Am. 1980 Oct;11(4):717-26.
39. Koh TJ, Grabiner MD, Weiker GG. Technique and ground reaction forces in the back handspring. Am J Sports Med. 1992 Jan-Feb;20(1):61-6.
40. Aronen JG. Problems of the upper extremity in gymnastics. Clin Sports Med. 1985 Jan;4(1):61-71.
41. Maffulli N. Skeletal System: a Limiting Factor to Sports Performance? A Brief Review. Journal of Orthopaedic Rheumatology. 1989(2):123-32.
42. Malina RM. Menarche in athletes: a synthesis and hypothesis. Annals of human biology. Ann Hum Biol. 1983 Jan-Feb;10(1):1-24.
43. Maffulli N. Children in sport: questions and controversies; in Maffuli N (ed): Color atlas and text of sports medicine in childhood and adolescence. London, Mosby-Wolfe, 1995:7-14.
44. Escamilla R, Fleisig G, Barrentine S, Andrews J, Moorman C, 3rd. Kinematic and kinetic comparisons between American and Korean professional baseball pitchers. Sports Biomech. 2002 Jul;1(2):213-28.
45. Lyman S, Fleisig GS, Waterbor JW, Funkhouser EM, Pulley L, Andrews JR, Osinski ED, Roseman JM. Longitudinal study of elbow and shoulder pain in youth baseball pitchers. Medicine and science in sports and exercise. Med Sci Sports Exerc. 2001 Nov;33(11):1803-10.
46. Benjamin HJ, Briner WW, Jr. Little league elbow. Clin J Sport Med. 2005 Jan;15(1):37-40.
47. Caine D, Cochrane B, Caine C, Zemper E. An epidemiologic investigation of injuries affecting young competitive female gymnasts. Am J Sports Med. 1989 Nov-Dec;17(6):811-20.
48. Daly RM, Bass SL, Finch CF. Balancing the risk of injury to gymnasts: how effective are the counter measures? British journal of sports medicine. Br J Sports Med. 2001 Feb;35(1):8-18; quiz 19.
