Mechanisms of Acute Tissue Degradation Following In Vitro Cartilage Injury
Michael A. DiMicco PhD, Alan J. Grodzinsky ScD, Young-Jo Kim, MD PhD
* DEPARTMENT OF ORTHOPAEDIC SURGERY, CHILDREN’S HOSPITAL, BOSTON MA
† CENTER FOR BIOMEDICAL ENGINEERING, MASSACHUSETTS INSTITUTE OF TECHNOLOGY, BOSTON MA

Introduction: Injury and Cartilage Degeneration

Degenerative joint diseases, such as osteoarthritis (OA), result in degradation of articular cartilage, characterized by release of structural components from the tissue and subsequent loss of tissue integrity and mechanical properties1. While the precise etiology of OA is unknown, its prevalence increases with age. Consistent with observations that the mechanical environment of cartilage influences its cellular biosynthesis2,3, abnormalities in joint loading, such as those due to obesity, joint laxity, or altered joint geometries (e.g., dysplasia4), have also been recognized as predictors of OA5.

Traumatic joint injury has also been postulated to be a precursor of OA development, though the long-term evolution from joint injury to a disease state is poorly understood. In the hours following injury, the level of degradative enzymes such as stromelysin (matrix metalloproteinase-3; MMP-3) in the synovial fluid increases up to 40-fold over normal levels, and elevated levels of MMP-3 persist for up to 20 years following injury6-8. Further analysis of post-injury synovial fluid reveals fragments of cartilage proteoglycans that appear to be cleaved by MMPs and aggrecanases and are similar in structure to the proteolytic fragments observed in joint fluids of patients with OA9-11.

Because joint injury is a complex phenomenon, involving high amplitudes and complex modes of loading, and potentially, multiple joint tissues, in vitro models of acute cartilage injury have been developed by several groups to allow more precise control of the tissue geometry, loading patterns, and incubation conditions. The parameters used in “injurious compression” experiments vary, but in vitro cartilage injury generally results in cell death (necrosis, apoptosis, or both), release of cartilage proteoglycans, increased tissue water content and swelling, decreasing mechanical functionality, and increased sensitivity to cytokines12-17, characteristics reminiscent of early stages of degenerative joint disease1. Although OA progression in vivo occurs over a period of years, these injury-induced changes can appear on a relatively short (hours to days) time scale following in vitro injury. It is possible that the short-term effects of applied loading may involve direct damage to the cartilage extracellular matrix, initiation of cell-mediated tissue destruction, and accelerated transport of degraded matrix from the tissue, any or all of which may be important in long-term tissue changes.

The objective of our studies is to determine whether acute release of cartilage matrix molecules during the first hours and days after injury is mediated by cellular biosynthesis (of matrix molecules and/or degradative enzymes), instigation of proteolytic activity, mechanical disruption of the cartilage extracellular matrix, or a combination of these. For this approach, we have utilized an in vitro cartilage injury model, in which bovine cartilage explants are subjected to compressive stress using an incubator-housed loading apparatus18, then returned to freeswelling culture (Figure 1). The condition of the cartilage is then followed for several days post-injury, and the release of matrix molecules to the culture medium is monitored by a series of biochemical assays (Figure 2). Determination of the injury-induced changes in cartilage composition and metabolism could elucidate the progression from joint injury to jointscale tissue degradation.

Methods

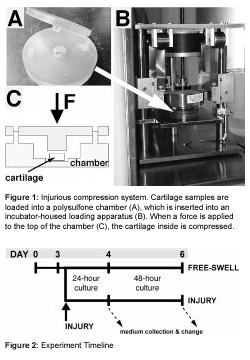

Cylindrical cartilage samples (3 mm diameter x 1 mm thick) were prepared from the patellofemoral grooves of immature bovine knee joints. Location-matched samples were distributed among experimental groups, and cultured for 2-3 days in medium (DMEM + 20 µg/mL ascorbate and antibiotics) with 10% fetal bovine serum. On Day 3, medium was changed to be serum-free (medium with 1% ITS-A). For inhibitor experiments, culture medium was also supplemented at this point with inhibitors of protein translation (cycloheximide) or MMP activity (one of two broad-spectrum hydroxamate MMP inhibitors: GM600119 or CGS 27023A20), and the efficacy of these inhibitors was tested in parallel experiments in free-swelling culture. In injury studies, cartilage samples were allowed to equilibrate in medium with or without inhibitors for 6 hours before being subjected to either in vitro injury (1 uniaxial unconfined compression to 50% thickness, at a strain rate of 1 mm/s, followed by immediate release of load) or maintained in a free-swelling state. Following compression, injured tissue was returned to culture in fresh serum-free medium with or without inhibitors. Culture media were collected and replaced at 24 and 72 hours post-injury, and collected media were frozen before biochemical analysis. To determine the effect of injury on protein and glycosaminoglycan biosynthesis, media were supplemented at various timepoints with radiolabeled precursors to these species ([3H]proline and [35S]sulfate, respectively).

On termination of cultures, tissue samples were processed for analysis of radiolabel incorporation. Media samples were assayed for content of sulfated glycosaminoglycan (sGAG), as an indicator of matrix release.

Results

Application of this in vitro injurious compression protocol generated peak stresses around 20 MPa within the tissue. Gross inspection of the tissue samples immediately following compression showed that ~50% of the samples had assumed an ellipsoidal geometry, and this shape change persisted through the remainder of the culture period. However, no sample was observed to have macroscopic tissue fissuring after loading. Staining of tissue with cell viability dyes indicated that qualitatively, cell death in injured samples was localized predominantly to the peripheral regions of the samples, where the unconfined compression protocol induces high tissue tensile strain and high fluid flow during compression21. Overall, sGAG and protein biosynthesis was reduced in injured samples compared to uninjured samples, which can be partially explained by the observed decrease in cell viability.

Inspection of conditioned culture medium revealed that sGAG was released from both free-swelling and injured cartilage, with much higher rates of release from injured samples. The appearance of sGAG in the culture medium of noninjured samples is thought to be reflective of normal matrix turnover mediated by the cells within the tissue. During the first 24 hours after injury, the amount of sGAG released to the culture medium was approximately twice that released from uninjured samples over the same time period, and amounted to approximately 5% of the total tissue content. Closer inspection revealed that the rate of sGAG release was higher during the first 4 hours than during the next 24 hours. The nearly-immediate nature of this matrix release suggested the possibility that injury-induced mechanical damage may be a mediator of short-term cartilage matrix degradation. Furthermore, the presence of inhibitors of protein translation and MMP activity were unable to reduce the matrix release during this time period.

During the subsequent 48 hours, the amount of sulfated GAG released to the culture medium from injured cartilage approximated that from uninjured samples. However, unlike in the most acute case, sGAG release from injured cartilage during this period was sensitive to the inclusion of inhibitors in the culture medium. Inhibition of protein translation using cycloheximide had no effect, but one of the two MMP inhibitors (CGS 27023A) reduced sGAG release by 20% compared to injured but untreated controls, while having no discernible effect on the magnitudes of protein or glycosaminoglycan biosynthesis.

Discussion and Ongoing Work

Taken together, the preliminary results of this work suggest that in the hours after cartilage injury, the release of structural matrix components from cartilage to the surroundings may be predominantly an effect of mechanical damage to the cartilage, rather than to cell-mediated processes. Measurements at early timepoints after injury indicate a burst of sGAG release, followed by slower matrix degradation. The lack of effect of inhibitors of protein translation and matrix metalloproteinase activity in the acute post-injury phase further supports a mechanism based on mechanical damage.

However, the effect of the matrix metalloproteinase inhibitor CGS 27023A at later timepoints suggests that the activity of catabolic enzymes may be important in the longer-term response to injury. It is interesting to note that inhibitors of protein translation did not reduce sGAG release during this time period, which implies that the catabolic activity inhibited by CGS 27023A may be due to a population of latent MMPs present in the matrix prior to injury, rather than proteolytic enzymes synthesized in response to injury. Experiments in which p-aminophenylmercuric acetate (APMA), a chemical activator of MMPs, is added to cartilage show a dramatic increase in cartilage matrix degradation, even in the absence of protein biosynthesis, illustrating the possibility of such a latent enzyme population22. Ongoing studies are investigating this possibility further.

Since it is known that the sGAG chains on aggregated proteoglycans within cartilage represent the main barrier to molecular diffusion, it is likely that the removal of a portion of these molecules from the tissue by the initial injury could facilitate access of degradative enzymes to their substrates within the tissue, allowing a progression of cartilage degradation.

It is not yet known whether the released sGAG molecules represent proteolytic fragments, or rather full-length proteoglycan molecules that could be released by damage to the collagen network. Even though no macroscopic tissue fissures were observed, it is likely that molecular damage of the collagen network is responsible for the observed shape changes in injured samples. Studies are planned to determine the size distribution of sulfated GAG-containing species released to culture medium, and proteolytic fragments will be identified using antibodies generated against cleavage sites of specific degradative enzymes (MMPs and aggrecanases).

It is clear that "joint injury" in vivo involves more than the isolated cartilage samples as studied in this idealized in vitro system, but important insights into the progression from trauma to degenerative joint disease may be gained from this type of work. It is well-known that cartilage does not heal well following injury, and the presence of a population of nonviable cells in the current model system suggests that injury induces cell death, which may reduce the capacity of the tissue for repair. Also, it has been previously observed that increased levels of degradative enzymes exist in the synovial fluid of injured joints, and that proteolytic matrix fragments also appear in the synovial fluid following trauma, and it is possible that inhibition of these catabolic activities could slow matrix degradation as was observed in the present system. By adding layers of complexity to this model system (such as inclusion of other joint tissues, cytokines, more complicated loading during and after injury), further understanding of the progression of post-traumatic secondary osteoarthritis may be achieved.


Notes:

Dr. DiMicco is a Research Fellow in Orthopaedic Surgery at Children's Hospital and a Postdoctoral Associate in the Center for Biomedical Engineering at MIT

Dr. Grodzinsky is a Professor of Mechanical, Electrical, and Biological Engineering, and the Director of the Center for Biomedical Engineering at MIT

Dr. Kim is an Instructor in Orthopaedic Surgery at Children's Hospital

Corresponding Author:
Young-Jo Kim, MD, PhD
Department of Orthopaedic Surgery
The Children’s Hospital
300 Longwood Avenue
Boston, MA 02115
e-mail: young-jo.kim@tch.harvard.edu

References:

  1. Buckwalter JA, Mankin HJ. Articular cartilage: Part II: Degeneration and osteoarthrosis, repair, regeneration, and transplantation. J Bone Joint Surg 1997; 79-A:612-32.
  2. Behrens F, Kraft EL, Oegema TR, Jr. Biochemical changes in articular cartilage after joint immobilization by casting or external fixation. J Orthop Res 1989; 7:335-43.
  3. Slowman SD, Brandt KD. Composition and glycosaminoglycan metabolism of articular cartilage from habitually loaded and habitually unloaded sites. Arthritis Rheum 1986; 29:88-94.
  4. Murphy SB, Ganz R, Muller ME. The prognosis in untreated dysplasia of the hip. A study of radiographic factors that predict the outcome. J Bone Joint Surg Am 1995; 77:985-9.
  5. Felson DT, Lawrence RC, Dieppe PA, et al. Osteoarthritis: new insights. Part 1: the disease and its risk factors. Ann Intern Med 2000; 133:635-46.
  6. Lohmander LS, Hoerrner LA, Dahlberg L, Roos H, Bjornsson S, Lark MW. Stromelysin, tissue inhibitor of metalloproteinases and proteoglycan fragments in human knee joint fluid after injury. J Rheumatol 1993; 20:1362-8.
  7. Lohmander LS, Hoerrner LA, Lark MW. Metalloproteinases, tissue inhibitor, and proteoglycan fragments in knee synovial fluid in human osteoarthritis. Arthritis Rheum 1993; 36:181-9.
  8. Lohmander LS, Ionescu M, Jugessur H, Poole AR. Changes in joint cartilage aggrecan after knee injury and in osteoarthritis. Arthritis Rheum 1999; 42:534-44.
  9. Fosang AJ, Last K, Maciewicz RA. Aggrecan is degraded by matrix metalloproteinases in human arthritis. Evidence that matrix metalloproteinase and aggrecanase activities can be independent. J Clin Invest 1996; 98:2292-9.
  10. Lohmander LS, Neame PJ, Sandy JD. The structure of aggrecan fragments in human synovial fluid. Evidence that aggrecanase mediates cartilage degradation in inflammatory joint disease, joint injury, and osteoarthritis. Arthritis Rheum 1993; 36:1214-22.
  11. Sandy JD, Verscharen C. Analysis of aggrecan in human knee cartilage and synovial fluid indicates that aggrecanase (ADAMTS) activity is responsible for the catabolic turnover and loss of whole aggrecan whereas other protease activity is required for C-terminal processing in vivo. Biochem J 2001; 358:615-26.
  12. Ewers BJ, Dvoracek-Driksna D, Orth MW, Haut RC. The extent of matrix damage and chondrocyte death in mechanically traumatized articular cartilage explants depends on rate of loading. J Orthop Res 2001; 19:779-84.
  13. Kurz B, Jin M, Patwari P, Cheng DM, Lark MW, Grodzinsky AJ. Biosynthetic response and mechanical properties of articular cartilage after injurious compression. J Orthop Res 2001; 19:1140-6.
  14. D’Lima DD, Hashimoto S, Chen PC, Colwell CW, Jr., Lotz MK. Impact of mechanical trauma on matrix and cells. Clin Orthop 2001:S90-9.
  15. Loening AM, James IE, Levenston ME, et al. Injurious mechanical compression of bovine articular cartilage induces chondrocyte apoptosis. Arch Biochem Biophys 2000; 381:205-12.
  16. Quinn TM, Grodzinsky AJ, Hunziker EB, Sandy JD. Effects of injurious compression on matrix turnover around individual cells in calf articular cartilage explants. J Orthop Res 1998; 16:490-9.
  17. Patwari P, Cook MN, DiMicco MA, et al. Proteoglycan degradation after injurious compression of bovine and human articular cartilage in vitro: interaction with exogenous cytokines. Arthritis Rheum (in press).
  18. Frank EH, Jin M, Loening AM, Levenston ME, Grodzinsky AJ. A versatile shear and compression apparatus for mechanical stimulation of tissue culture explants. J Biomech 2000; 33:1523-7.
  19. Galardy RE, Cassabonne ME, Giese C, et al. Low molecular weight inhibitors in corneal ulceration. Ann N Y Acad Sci 1994; 732:315-23.
  20. MacPherson LJ, Bayburt EK, Capparelli MP, et al. Discovery of CGS 27023A, a non-peptidic, potent, and orally active stromelysin inhibitor that blocks cartilage degradation in rabbits. J Med Chem 1997; 40:2525-32.
  21. Kim YJ, Bonassar LJ, Grodzinsky AJ. The role of cartilage streaming potential, fluid flow and pressure in the stimulation of chondrocyte biosynthesis during dynamic compression. J Biomech 1995; 28:1055-66.
  22. Bonassar LJ, Stinn JL, Paguio CG, et al. Activation and inhibition of endogenous matrix metalloproteinases in articular cartilage: effects on composition and biophysical properties. Arch Biochem Biophys 1996; 333:359-67.
