Radiostereometric Analysis(RSA) of the Anatomical Total Shoulder Arthroplasty and Reverse Total Shoulder Replacement: An Analysis of Component Stability and Polyethylene Wear
Reuben Gobezie, MD, Kyle P.Lavery, BA, Charlie Bragdon, PhD, Laurence D. Higgins, MD, Henrik Malchau, MD, Jon J.P. Warner, MD
Massachusetts General Hospital

Introduction

Conventional total shoulder replacement is an important treatment alternative for patients with debilitating joint destruction from a wide variety of etiologies. As a discipline, shoulder arthroplasty is one of the fastest growing areas in joint replacement surgery and the prospects for future growth appear assured as the population of elderly expands rapidly over the next few decades.1

The clinical importance and utilization of the reverse total shoulder replacement is even more staggering. This prosthesis was first developed by Grammont in the early 1970’s.2 Several generations of this prosthesis have since been developed and the reverse total shoulder replacement has been used widely in Europe for more than 15 years as a salvage operation for rotator cuff arthropathy. The introduction of this prosthesis to the United States in March of 2004 has resulted in an almost instantaneous adaptation of this technology for our patients. In fact, the incorporation of this prosthesis into our treatment arsenal has been encouraged by some of the first mid-term clinical outcomes studies from the French indicating that the survivorship of these prosthesis, even at 10 years, may be comparable to that for historical data from conventional shoulder arthroplasty even if the complications rate for this procedure is significantly higher. 3-5

Despite our extensive experience with shoulder arthroplasty and numerous clinical outcomes studies validating the effectiveness of this treatment in relieving pain and restoring function, relatively little is understood about component stability or polyethylene wear with these prostheses. The development of improved prosthetic design and, ultimately, greater longevity and function for our patients is dependent on a better understanding of these factors. The purpose of this paper is to introduce the application of radiostereographometric analysis (RSA) in the analysis of conventional and reverse total shoulder replacements as a means of deepening our understanding of these issues in shoulder arthroplasty.

THE PROBLEMS: COMPONENT STABILITY AND WEAR

Component stability
Several of the clinical studies with long-term follow-up after total shoulder replacement have indicated that the ‘weaklink’ for component stability in these prosthesis is the glenoid.1, 4, 6-12

While migration or rotation of the glenoid component on serial radiographs is a dramatic and definitive indicator for failure of fixation, the identification of early loosening has primarily been made by observing the progression of radiolucent lines with time. The reliability of this technique for identifying early loosening has been studied and been shown to be poor since many patients have radiolucent lines on their first postoperative xray, reproducible positioning of the patient is difficult and the anatomic variation of the glenoid version greatly influences the frequency of observed radiolucencies.14-16 Consequently, the reported rate of radiolucency has ranged from 22-95%.4, 12, 17-19

The need for accurate and precise analysis of component stability in total shoulder arthroplasty is not trivial. The potential complications that may result from loose prosthesis may include osteolysis of the glenoid, glenohumeral instability, dislocation of the component, pain and loss of function.20

Wear
To date, the issue of polyethylene wear has simply not been studied in total shoulder arthroplasty. The need to gain a better understanding of the potential role that polyethylene wear may have in glenoid loosening, osteolysis and component failure is clear based on our collective experience from hip and knee arthroplasty. It is now well established that hip and knee periprosthetic osteolysis is a direct result of particulate debris generated from the implants.

The relatively recent development of ultrahigh molecular weight highly cross-linked polyethylene developed at the Harris Orthopaedic Biomechanics and Biomaterials Laboratory at Massachusetts General Hospital and the laboratory data supporting the marked reduction in particulate debris has resulted in the use of this material clinically since 1999.21-24 Now, virtually all manufactured soft-bearing component systems for total hip arthroplasty use highly cross-linked UHMWPE as the standard liner for their prostheses. The early clinical results with this new polyethylene in THA have verified a reduction in polyethylene with reduced rates of femoral head penetration.25, 26 27, 28

The importance of expanding our understanding of polyethylene wear to total shoulder replacements is particularly crucial since none of the total shoulder replacement systems currently on the market utilize highly cross-linked polyethylene as a bearing surface.

ROENTGEN STEREOPHOTOGRAMMETRIC ANALYSIS (RSA)

What is it?
RSA is a technique that was developed by Selvik et al. 29 in order to accurately and quantitatively measure the relative displacement of components on the axial skeleton. RSA is widely accepted as the most accurate method to determine the magnitude of relative displacements between rigid objects using radiographs. The technique has been expanded and refined for a wide variety of purposes including the study of growth plate integrity, joint kinematics, implant stability, spinal fusion integrity and polyethylene wear. 30, 31 26, 32, 33 Using RSA, relative motion as little as 0.1-0.7 mm between two rigid bodies (implant and bone) can be reproducibly and accurately determined.20, 34, 35

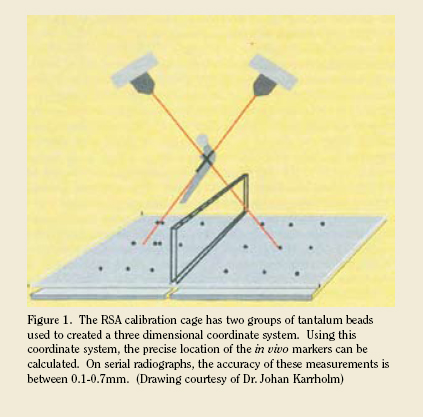

RSA requires the implantation of small tantalum beads. Tantalum is used since its high density makes its visualization on radiographs optimal. A pair of stereo-radiographs is taken with the patient positioned in front of a calibration cage so that a three-dimensional coordinate system can be generated. (Figure 1)36 Sequential radiographs are obtained and analyzed using an automated image analysis tools and relative displacements can be determined.

What’s been done with this technique?
Only two studies using RSA to analyze component stability after total shoulder arthroplasty have been reported. In a study by Nagels et al, five patients after TSR using a keeled cemented glenoid were analyzed using RSA at a minimum of 3 years after implantation.20 Three of the five patients had evidence of glenoid loosening based on component migration ranging from 1.2-5.5 mm; only one patient with gross loosening had radiographically visible evidence consistent with the RSA findings. Despite the small sample size, these investigators were able to suggest that traditional radiographs likely underestimated the degree of early loosening for the glenoid component.

Rahme et al. reported on a larger series of 14 shoulders with keeled cemented glenoids evaluated using RSA at a minimum of two-years follow-up.16 Translation of the glenoid of greater than 1mm was observed in four of the shoulders and rotation of greater than 2º was observed in ten shoulders. Eleven of the 14 shoulders studied had evidence of radiolucent lines about the glenoid component although most of the lines were not progressive and were less than 0.1mm in width. Interestingly, the presence of radiolucent lines did not correlate with component migration based on the RSA findings.

What are we doing and how are we doing it?

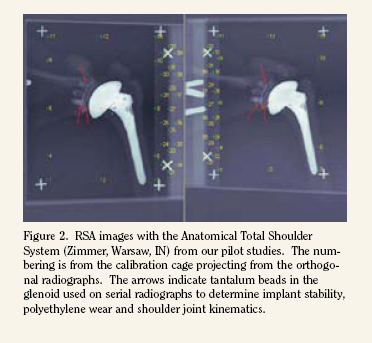

We have recently commenced a five-year prospective RSA study in order to provide insight into the relevant questions regarding component stability and polyethylene wear in both conventional Anatomical total shoulder replacements and the reverse prosthesis. (Figure 2) In addition to conducting an adequately-powered study, the goals of this research project incorporate three unique experimental design features: (1) the study of pegged cemented glenoids, (2) the first study of reverse total shoulder replacements, (3) the application of RSA to the quantification of polyethylene wear in addition to component stability.

If we are able to achieve the goals of our study, the quantification of component mobility and polyethylene wear in these two arthroplasty systems, we believe several significant contributions to our understanding of shoulder arthroplasty will be attained. First, this information would enable us to assess the short-term performance of current component designs quantitatively providing a basis of comparison between prosthesis that does not exist today. Second, the RSA wear data would answer the potentially important questions regarding what clinically significant role, if any, does polyethylene wear play in the failure of total shoulder replacements and the glenoid component, in particular. Third, these studies would provide insight into the kinematics of total shoulder arthroplasty in these two very different devices. Finally, the information we learn from these studies may enable us to enhance our collective efforts to optimize the design of total shoulder replacements in a manner that maximizes their in vivo longevity and improves the function of our patients’ shoulders.



Reuben Gobezie M.D. is a Shoulder Fellow at Massachusetts General Hospital.
Kyle Lavery B.A. is a research assistant for the Harvard Shoulder Service.
Charlie Bragdon Ph.D. is member of the Orthopedics Biomechanics and Biomaterials lab.
Laurence D. Higgins M.D. is Co-Chief of the Harvard Shoulder Service.
Henrik Malchau M.D. is a Visiting Professor of Orthopedic Surgery at Harvard Medical School.
Jon J.P. Warner M.D. is Co-Chief of the Harvard Shoulder Service.

Address correspondence to:

Jon J.P. Warner M.D.
Massachusetts General Hospital
55 Fruit St.
Boston, MA 02114

References:

  1. Wirth MA, Rockwood CA, Jr. Complications of total shoulder-replacement arthroplasty. J Bone Joint Surg Am 1996;78(4):603-16.
  2. Grammont PM, Baulot E. Delta shoulder prosthesis for rotator cuff rupture. Orthopedics 1993;16(1):65-8.
  3. Sirveaux F, Walch, G. Unpublished data presented at the American Shoulder and Elbow Society Annual Meeting, 2006;
  4. Torchia ME, Cofield RH, Settergren CR. Total shoulder arthroplasty with the Neer prosthesis: long-term results. J Shoulder Elbow Surg 1997;6(6):495-505.
  5. Sperling JW, Cofield RH, Rowland CM. Minimum fifteen-year follow-up of Neer hemiarthroplasty and total shoulder arthroplasty in patients aged fifty years or younger. J Shoulder Elbow Surg 2004;13(6):604-13.
  6. Cofield RH. Total shoulder arthroplasty with the Neer prosthesis. J Bone Joint Surg Am 1984;66(6):899-906.
  7. Lacroix D, Prendergast PJ. Stress analysis of glenoid component designs for shoulder arthroplasty. Proc Inst Mech Eng [H] 1997;211(6):467-74.
  8. Sperling JW, Cofield RH, Rowland CM. Neer hemiarthroplasty and Neer total shoulder arthroplasty in patients fifty years old or less. Long-term results. J Bone Joint Surg Am 1998;80(4):464-73.
  9. Skirving AP. Total shoulder arthroplasty -- current problems and possible solutions. J Orthop Sci 1999;4(1):42-53.
  10. Hopkins AR, Hansen UN, Amis AA, Emery R. The effects of glenoid component alignment variations on cement mantle stresses in total shoulder arthroplasty. J Shoulder Elbow Surg 2004;13(6):668-75.
  11. Severt R, Thomas BJ, Tsenter MJ, Amstutz HC, Kabo JM. The influence of conformity and constraint on translational forces and frictional torque in total shoulder arthroplasty. Clin Orthop Relat Res 1993(292):151-8.
  12. Brenner BC, Ferlic DC, Clayton ML, Dennis DA. Survivorship of unconstrained total shoulder arthroplasty. J Bone Joint Surg Am 1989;71(9):1289-96.
  13. Weiss AP, Adams MA, Moore JR, Weiland AJ. Unconstrained shoulder arthroplasty. A five-year average follow-up study. Clin Orthop Relat Res 1990(257):86-90.
  14. Havig MT, Kumar A, Carpenter W, Seiler JG, 3rd. Assessment of radiolucent lines about the glenoid. An in vitro radiographic study. J Bone Joint Surg Am 1997;79(3):428-32.
  15. Lazarus MD, Jensen KL, Southworth C, Matsen FA, 3rd. The radiographic evaluation of keeled and pegged glenoid component insertion. J Bone Joint Surg Am 2002;84-A(7):1174-82.
  16. Rahme H, Mattsson P, Larsson S. Stability of cemented all-polyethylene keeled glenoid components. A radiostereometric study with a two-year follow-up. J Bone Joint Surg Br 2004;86(6):856-60.
  17. Amstutz HC, Thomas BJ, Kabo JM, Jinnah RH, Dorey FJ. The Dana total shoulder arthroplasty. J Bone Joint Surg Am 1988;70(8):1174-82.
  18. Barrett WP, Franklin JL, Jackins SE, Wyss CR, Matsen FA, 3rd. Total shoulder arthroplasty. J Bone Joint Surg Am 1987;69(6):865-72.
  19. Boyd AD, Jr., Thomas WH, Scott RD, Sledge CB, Thornhill TS. Total shoulder arthroplasty versus hemiarthroplasty. Indications for glenoid resurfacing. J Arthroplasty 1990;5(4):329-36.
  20. Nagels J, Valstar ER, Stokdijk M, Rozing PM. Patterns of loosening of the glenoid component. J Bone Joint Surg Br 2002;84(1):83-7.
  21. Jasty M, Goetz DD, Bragdon CR, et al. Wear of polyethylene acetabular components in total hip arthroplasty. An analysis of one hundred and twenty-eight components retrieved at autopsy or revision operations. J Bone Joint Surg Am 1997;79(3):349-58.
  22. Muratoglu OK, Bragdon CR, O’Connor DO, et al. Unified wear model for highly crosslinked ultra-high molecular weight polyethylenes (UHMWPE). Biomaterials 1999;20(16):1463-70.
  23. Shen FW, McKellop HA, Salovey R. Morphology of chemically crosslinked ultrahigh molecular weight polyethylene. J Biomed Mater Res 1998;41(1):71-8.
  24. Muratoglu OK, Bragdon CR, O’Connor DO, Jasty M, Harris WH. A novel method of cross-linking ultra-high-molecular-weight polyethylene to improve wear, reduce oxidation, and retain mechanical properties. Recipient of the 1999 HAP Paul Award. J Arthroplasty 2001;16(2):149-60.
  25. Martell JM, Verner JJ, Incavo SJ. Clinical performance of a highly cross-linked polyethylene at two years in total hip arthroplasty: a randomized prospective trial. J Arthroplasty 2003;18(7 Suppl 1):55-9.
  26. Digas G, Karrholm J, Thanner J, Malchau H, Herberts P. The Otto Aufranc Award. Highly cross-linked polyethylene in total hip arthroplasty: randomized evaluation of penetration rate in cemented and uncemented sockets using radiostereometric analysis. Clin Orthop Relat Res 2004(429):6-16.
  27. Bragdon CR, Barrett S, Martell JM, Greene ME, Malchau H, Harris WH. Steady State Wear Rate of E-Beam Irradiated, Highly Cross-linked Polyethylene at an Average 45 Month Follow-up. Journal of Arthroplasty 2006;Accepted.
  28. Geller J, Bragdon C, Freiberg AA, et al. A Minimum Five-year Follow-up of Highly Crosslinked Polyethylene Liners in Total Hip Replacement. In: 73rd Annual Meeting of the American Academy of Orthopaedic Surgeons; 2006; Chicago IL; 2006. p. 517.
  29. Hansson LI, Olsson TH, Selvik G, Sunden G. A roentgen stereophotogrammetric investigation of innominate osteotomy (Salter). Acta Orthop Scand 1978;49(1):68-72.
  30. Karrholm J, Hansson LI, Selvik G. Longitudinal growth rate of the distal tibia and fibula in children. Clin Orthop Relat Res 1984(191):121-8.
  31. Mjoberg B, Selvik G, Hansson LI, Rosenqvist R, Onnerfalt R. Mechanical loosening of total hip prostheses. A radiographic and roentgen stereophotogrammetric study. J Bone Joint Surg Br 1986;68(5):770-4.
  32. Ahl T, Dalen N, Lundberg A, Selvik G. Mobility of the ankle mortise. A roentgen stereophotogrammetric analysis. Acta Orthop Scand 1987;58(4):401-2.
  33. Hildebrand H, Aronson S, Kullendorff CM, Selvik G. Roentgen stereophotogrammetric short-term analysis of growth rate in children operated for Crohn’s disease. Acta Paediatr Scand 1991;80(10):917-23.
  34. Bragdon CR, Estok DM, Malchau H, et al. Comparison of Two Digital Radiostereometric Analysis (RSA) Methods in the Determination of Femoral Head Penetration in a Total Hip Replacement Phantom. Journal of Orthopaedic Research 2004;22(3):659-64.
  35. Bragdon CR. Evaluations of Methods of Measuring Wear of Polyethylene Acetabular Components in Total Hip Arthroplasty. PhD Thesis, Department of Orthopaedics, Institute of Surgical Sciences, Göteborg, University, Sweden 2004(ISBN 91-628-6154-9).
  36. Bragdon C. Evaluation of Methods of Measuring Wear of Polyethylene Acetabular Components in Total Hip Arthroplasty. PhD Thesis, Institute of Surgical Sciences, Goteborg University, Goteborg, Sweden 2004.
